Mega-Pixel Digital Camera Measurement and Imaging

ZView provides comprehensive and advanced non-contact video dimensional measurement, imaging and visual inspection software to customers worldwide. A variety of software versions are available to meet nearly every need from software replicating crosshair generators with simple point-to-point measurement to full motorized X, Y, and Z stage reading and digital edge detection.plink ZView DMP (Digital Measurement Plus) series software is a PC-based field of view dimensional measurement and imaging software that turns a conventional microscope into a powerful measurement system. The DMP programs are specially designed with an integrated driver for the Vitana PixeLINK digital camera (sold separately) to run "live." The software uses advanced edge detection technology for sub-pixel accuracy in measurements and calibrations on "live" digital or captured images. With four versions to choose from, nearly every user can take advantage of the mega-pixel imaging with sub-pixel precision of ZView's software for remarkable measurement accuracy.

The simplest version is ZView's DMP-1000 2D field-of-view point-to-point measurement software. Measure lines, circles, angles, and distances. Feature results can be exported to text files or linked to spreadsheet applications. Simple annotation tools and image comparison tools. Create collections of saved images. Inspection overlays include crosshair, rectangle, circle, and resizable grid.

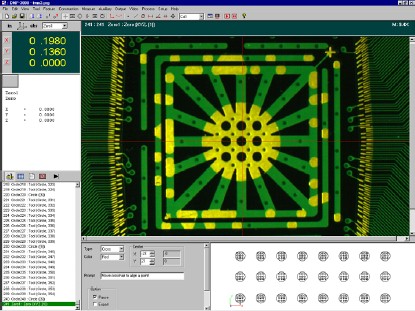

screenshot Next, ZView's DMP-2000 2D field-of-view point-to-point measurement software. In addition to the capabilities of the DMP-1000, DMP-2000 offers tolerance functions that conform to ASME Y14.5M 1994. Easily create, save and run programs.

ZView's DMP-3000 software adds stage measurement to the DMP-2000 capabilities. ZView supports a variety of encoder interfaces including computer card, RS232 and USB. This is one of Capra's most popular software packages.

At the high end is ZView's DMP-4000 CNC measurement software. This software supports stage mapping, programmed lighting, zoom and laser sensor (optional) in addition to the features listed above. ZView supports several US made motion controllers including motion controls from MEI, Galil and Parker Automation.

DMP Minimum System Requirements
Pentium 450 MHz or faster processor, 128 MB RAM, 50 MB available hard disk space, video card with 24 or 32 bit true color graphics (DirectDraw support preferred), 8MB VRAM, monitor with 1280x1024 resolution, DirectX 7.0 or higher, CD-ROM, Windows 98 SE, ME, XP, 2000 or NT 4.0 w/SP6.

 Specs (PDF format): | DMP1000 | DMP2000 | DMP3000 | DMP4000 |

For more information, call Capra at (508) 650-9700 .
