Color Video Camera Micro-Mac 7

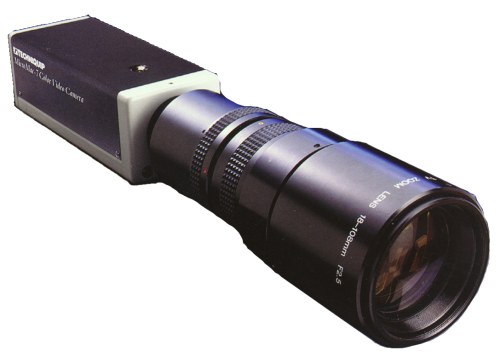

 Click to Enlarge    A range of high resolution video cameras and systems are available from TechniQuip. Our Micro-Mac series of both color and black and white high resolution video cameras offer significant performance features. The Micro-Mac 7 color video camera is a compact CCD unit with Y/C output that offers outstanding high resolution in pure, natural color for a wide variety of inspection and viewing applications. The CCD system offers exceptional sensitivity (.3 lux) for low light operation. Its NTSC and Y/C output provide for better signal to noise ratio and increased contrast, in a convenient self contained design. PAL versions of the Micro-Mac color cameras are available on request. Power packs are included with all color cameras.
Features: For more information, call Capra at (508) 650-9700.
  Micro-Mac 7
Image Device Interline Transfer 1/2" CCD
Picture Elements 768 (H) x 494 (V)
Sensitivity .3 lux an CCD surface
S/N Ratio Greater then 47dB (AGC off)
Electronic Shutter Auto/Manual
Resolution 450 TVL (500 TVL - "S")
Gamma Auto/Manual (3200, 4600, 5600)
Gain AGC (On/Off)
Lens Mount C/CS (Adapter supplied)
Power Requirements 12VDC +/-10%
Connectors BNC-NTSC output
BNC-Ext. Sync Input
4 Pin Mini Din - "S" output
6 Pin Hirose - DC input
