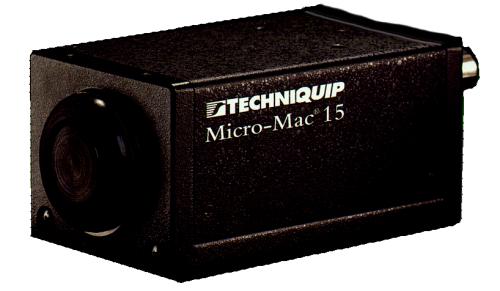

Micro-Mac 15 Black & White Machine Vision Camera

 Click to Enlarge    The Micro-Mac 15 is a full function black & white machine vision camera at an excellent price. The Micro-Mac 15 is appropriate for applications such as machine vision, pattern recognition microscopy, and in situations where high speed image capturing is needed. The Micro-Mac 15 can be set to 2:1 Interlace scanning or non-interlace giving you a stable, high resolution image. We have also included a "new" grade of Hyper CCD sensor to produce 0.5 lux minimum illumination sensitivity. The "New" Hyper CCD sensor will provide you with a more dynamic range and a view with very little smear. The Micro-Mac 15 can also be used as a stand alone camera.

For more information, call Capra at (508) 650-9700.
  Micro-Mac 15
CCD Image Sensor 1/2" format, interline transfer
Number of Pixels High resolution model:
a) 768H x 494V for EIA
b) 752H x 582V CCIR
Sync Systems Internal, External HD/VD or random trigger
Scanning System 2:1 Interlace or Non-Interlace
Sensitivity 500 lux at F8, AGC Off
Horizontal Resolution 570 TV lines
Minimum Illumination 0.5 lux at F1.4, AGC On
Electronic Shutter OFF 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec. or Automatic
Async trigger shutter 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec
Long-time exposure 1/30 (Unit: Field or Frame)
Lens Mount C Mount
Power Requirements 12VDC +/-10%
Weight 245g (0.547lbs approx)

Capra Optical, Inc.
Telephone: (508) 650-9700
