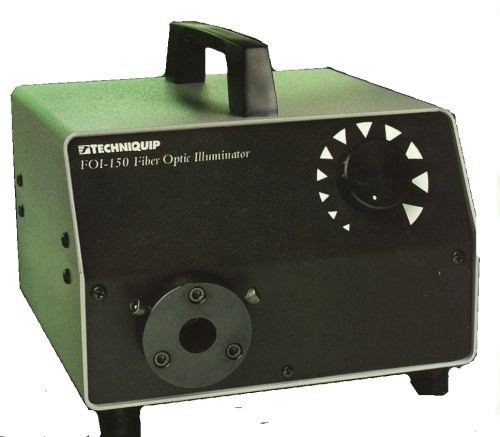

Fiber Optic Illuminator FOI-150/150A

The FOI-150 and FOI-150A provide uniform illumination of focused white light for a wise variety of applications. The front-mounted output aperture permits adding a filter holder for use with a complete chromatic range of Schott glass filters. It also provides maximum flexibility to adapt the illuminator for use with our light guides or those of other manufacturers. Our on-off intensity control allows fine adjustment of the intensity and increases lamp life by reducing the initial current surge when the illuminator is activated. The lock-in feature for light guides, secured by two socket cap screws, permits the illuminator to operate on its back without disconnecting the light guides.

Features:

Performance packed - you can't buy a better unit for less
Uniform & accurate illumination
Low noise and vibration levels
Use our light guides or other manufacturers' as well.
heat dissipation through improved venting
Minimal light loss and reduced light spill
A single on/off intensity control switch to increase lamp life
150 watt quartz halogen lamp with integral dichoric reflector focuses the maximum light intensity onto the fiber optic bundle while reducing the IR wavelengths
Front-mounted output aperture to accommodate a variety of lightguides, secured by socket cap screws to ensure a lock fit.
Easy access to lamp facilitates replacements without tools. The access door features a captive screw to ensure a lock fit.
Rear mounted snap-out fuse.
Heavy duty all metal construction, balanced to accommodate the use of heavy lightguide accessories.
Ball-bearing fan for reduced vibration, reduced noise, and extended equipment life.
Can be placed on end for reduced table space.

For more information, call Capra at (508) 650-9700.

	FOI-150	FOI-150A
Power / Frequency	120VAC 60Hz	120VAC 50Hz
Fuse	2 amps "Slo-Blo"	2 Amps "Slo-Blo"
Lamp Type	EKE 21 volt 150 watt halogen	EJA 21 volt 150 watt halogen
Lamp Life	200 Hrs Min	40 Hrs Min
Lamp Color Temperature	3200^oK (at full output)	3350^oK (at full output)
Output Aperture	5/8" (.625" ID) Standard	5/8" (.625" ID) Standard
Weight	7.5lbs	7.5lbs
