CCD Color Camera Module XC-003 / 003P

 Click to Enlarge    The XC-003/03P is a 3CCD RGB color camera module designed mainly for machine vision and image processing applications. Sony has developed a new 3CCD C mount optical prism block to achieve three times higher resolution compared to a 1CCD system. By utilizing the standard C mount lens system, XC-003/003P allows customers to use a wide variety of lenses to satisfy many optical requirements. Expensive bayonet mount lenses are not required. The XC-003/003P's improved external trigger shutter function called "E-DONPISHA" will allow input of a random external pulse for instant RGB output. This feature is very useful in high speed color inspection systems.


For more information, call Capra at (508) 650-9700.

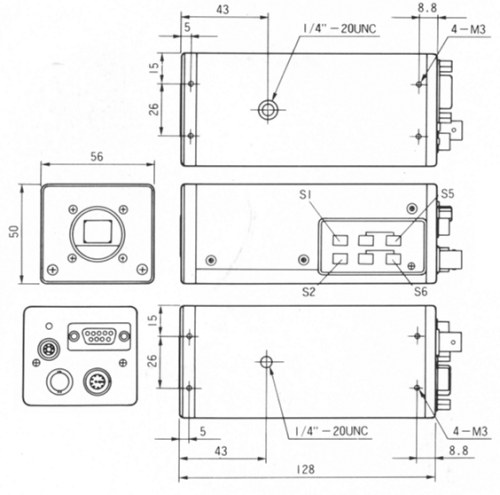

Click here for diagram: | XC-003 |
  Sony XC-003/003P
Pick up device 1/3" Interline transfer Hyper HAD CCD (x3)
Picture elements 768 (H) x 494 (V) / 752(H) x 582(V)
Signal system NTSC/PAL
Cell size 6.35(H) x 7.4(V) um / 6.5(H) x 6.25(V) um
Lens mount C mount
Flange back 17.526mm in air
Sync system Internal / external (auto)
External Sync HD/VD, VS
Horizontal resolution 570 TV lines, RGB 756 dots each / 739 dots eavh
Sensitivity 2000lux F5.6
Minimum sensitivity 31 lux (F2.2, gain 18dB, 100% level)
S/N ratio 59dB / 58dB
Normal shutter up to 1/10,000 sec., 8 steps
Low speed shutter 1 to 129 frame (1 frame each)
E-DONPISHA one external trigger is necessary
up to 1/12000, 8 steps (NTSC)
up to 1/10,000, 7 steps (PAL)
Gain 0dB to 18dB (1dB step)
Weight about 440g
