Color Video Printer UP-2800

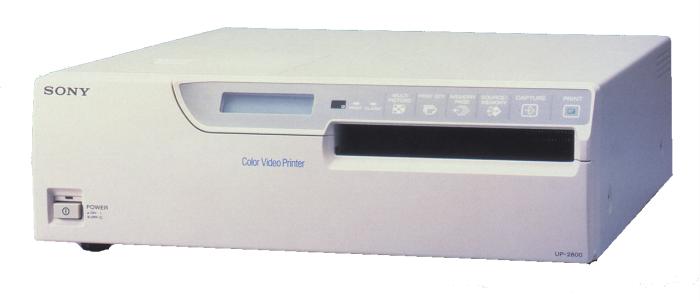

 Click to Enlarge    Sony's new UP-2800 is a high performance, full featured 3 1/2" x 5" size color video printer designed for business applications. The UP-2800 offers advanced features that include RGB inputs for high quality prints and an LCD indicator for easy operation. With fast print speed, 310 dpi resolution, RS-232 control, and 200 sheet capacity, the UP-2800 is ideal for amusement imaging, event photography, video production, and scientific applications.


For more information, call Capra at (508) 650-9700.
Printing Method Dye transfer sublimation
Thermal Head Resolution 310 dpi/1024 elements (12.2 dots/mm)
Gradation 256 gradations for Yellow, Magenta, Cyan
Effective Print Pixels 860 x 976 dots
Paper Size A6, 3.5 x 5.2 inches
UPC-2040A = 4.4 x 5.2 inches
UPC-2070 = 4.4 x 5.2 inches
Picture Size 3.2 x 4.4 inches
Picture Memory 4 frame
Print Speed Approx. 35 seconds
Inputs Y / C seperate (4-pin S terminal)
Composite video (BNC)
Outputs Y / C seperate (4-pin S terminal)
Composite video (BNC)
Control Terminals RS-232 (D-sub 25-pin)
Power Requirements AC 100-120V, 50/60Hz
Weight 22 lbs
