Features:

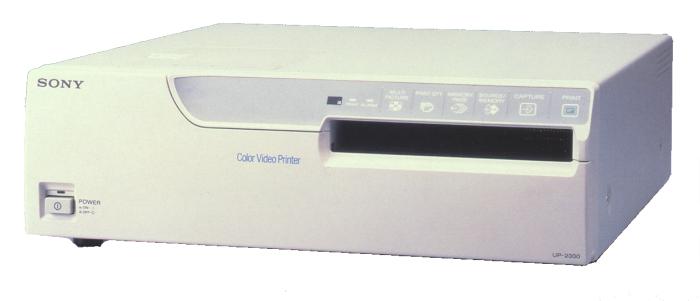

UP-2300 | |
Printing Method | Dye transfer sublimation |
Thermal Head Resolution | 310 dpi/1024 elements (12.2 dots/mm) |
Gradation | 256 gradations for Yellow, Magenta, Cyan |
Effective Print Pixels | 860 x 976 dots |
Paper Size | A6, 3.5 x 5.2 inches
UPC-2040A = 4.4 x 5.2 inches UPC-2070 = 4.4 x 5.2 inches |
Picture Size | 3.2 x 4.4 inches |
Picture Memory | 1 frame |
Print Speed | Approx. 35 seconds |
Inputs | Y / C seperate (4-pin S terminal)
Composite video (BNC) |
Outputs | Y / C seperate (4-pin S terminal)
Composite video (BNC) |
Control Terminals | RS-232 (D-sub 25-pin) |
Power Requirements | AC 100-120V, 50/60Hz |
Weight | 22 lbs |
