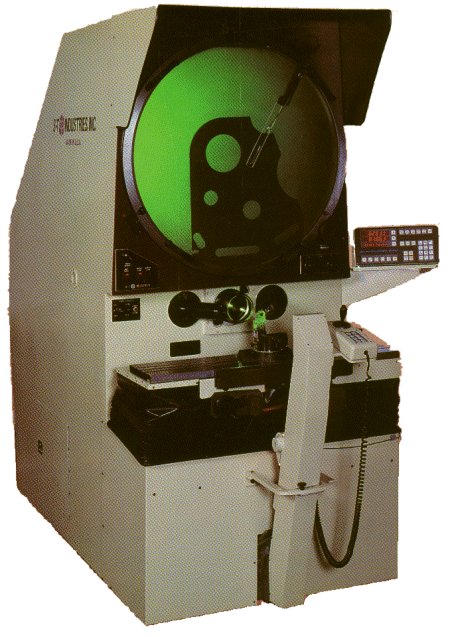

Optical Comparator 5600/5800 Series
The
New "5600/5800" Series 30" Comparator features an ultra-bright vertical
screen which projects an "ERECT" image of the part being inspected. With
35 years of experience manufacturing optical comparators in the U.S. and
nationwide factory service makes S-T Comparators your best buy in the industry.
-
Ultra bright high resolution erect image on vertical 30" diameter glass
screen with crosslines.
-
Duplex surface illumination, with adjustable spot or floodlight focusing.
-
8" x 35" chrome plated table with 500lb capacity and 3 standard clamping
slots. 9" vertical x 12" horizontal stage travel with 3" focus travel.
9" x 20" stage travel available.
-
Bright profile illumination with adjustable telecentric stop and selectable
green filter.
-
Manually driven protractor ring with digital readout to 1 min. of arc over
360o. Appears as "Q" axis on digital readouts.
-
State of the art electronics. Choice of 4 readout systems, all DRO's have
RS232C output and available with complete geometric functions and automatic
edge sensing.
-
2-axis joystick control of stage motion with infinitely variable speed
control.
-
Helix angle to +- 10o by swinging lamphouse.
-
Mounted on three 7" diameter wheels for portability. Floor leveling screws.
For more information, call Capra at (508) 650-9700.

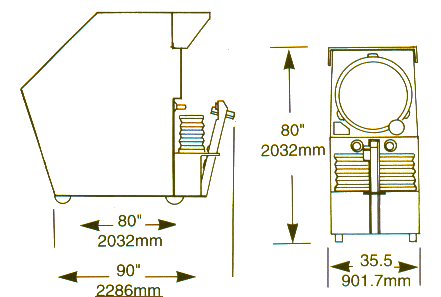

Click here for diagrams: | 5600 Series
|
