"NI" Series Illumination Systems


The N-150 is the Microscopy Illuminator the industry has been waiting for. Every aspect of the NI-150 was built with the microscope user in mind. This 150 watt wonder delivers 350,000 foot candles of high-intensity, cold light illumination with a lamp life of over 1,000 hours. The NI-150 is availbe in 115V and 230V and is UL, CE and c-UL approved. A wide variety of accessories are available, including single and dual gooseneck light pipes, ringlights, a diascopic adapter for the Nikon C-DS Diascopic Stand, focusing lenses and filters. It features a 0-100% intensity control knob and a sleek, modern design with a handle built into the housing. A convenient side door makes changing lamp fast and easy, while audible noise and vibration is minimal.
Sophisticated yet affordable, the NI-30 offers the value-conscious buyer many of the features found in the NI-150. The rugged, convection-cooled enclosure eliminates all noise and vibration for those users with tight workspaces and/or critical applications. The NI-30 is a 30 watt quartz halogen unit that comes standard with a single fiber optic gooseneck light pipe and delivers 10,000 foot candles of intense, cold illumination. Dual gooseneck light pipes and ringlights are also available. Incorporating the NI-150's most popular features, the NI-30 is a well-designed economical illuminator.

NI-150 NI-30
Lamp: EKE, 21 Volt, 150 Watt EKZ 10.8 Volt, 30 Watt
Voltage: 115 VAC 50/60 Hz 115 VAC 50/60 Hz
230 VAC 50/60 Hz 230 VAC 50/60 Hz
Color Temperature: 3250 K with EKE lamp 3250 K with EKZ lamp
Intensity Control: 0-100%  --
Fuse (115V): 3A 5 x 20mm slow blow 0.5A 5x 20mm 250V slow blow
Fuse (230V): 2A 5 x 20mm slow blow 0.5A 5x 20mm 250V slow blow
Noise Level: <24dB 0.0
Safety Approvals: UL, CE, c-UL UL, CE, c-UL
Dimensions: 6.0"(L) x 8.5" (W) x 5.3 (H) 6.0"(L) x 8.5" (W) x 5.3 (H)
Weight: 7.75 lbs 7.75 lbs

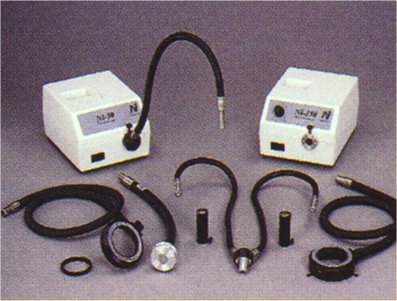

Fiber Light Guides and Accessories

A variety of optional accessories are available for both the NI-150 and NI-30, including dual and single fiber optic gooseneck light pipes, fiber optic ring lights, focusing lenses, and filters. As and additional option to the 20V Lamphouse for the C-Diascopic Stand, Nikon offers a fiber optic cable and adapter to allow the use of the NI-150 illuminator for bright, even 150W diascopic illumination.

For more information, call Capra at (508) 650-9700.
