Optiphot 100S
An ergonomic design, an efficient optical system and a host of advanced
features make the Nikon OPTIPHOT 100S metallurgical/industrial microscope
ideally suited to the needs of semiconductors, electronics, general metallurgy,
crystallography, and ceramics.
Nikon's new optical system delivers crisp, clear images even at high magnifications. Furthermore, the system readily accepts a wide range of accessories, offering high-performance capabilities and unsurpassed overall performance.
Yet for all its optical sophistication, the OPTIPHOT 100S sacrifices nothing in terms of durability and ease of use. For example, it offers comfortable tilting eyepiece tubes, a coaxial focusing system, and a built in 100W transformer. And it is the first Nikon metallurgical microscope to employ the proven Optiphot ergonomic body design, renowned for its efficiency, stability, and superior operation.
For more information, call Capra at (508) 650-9700.

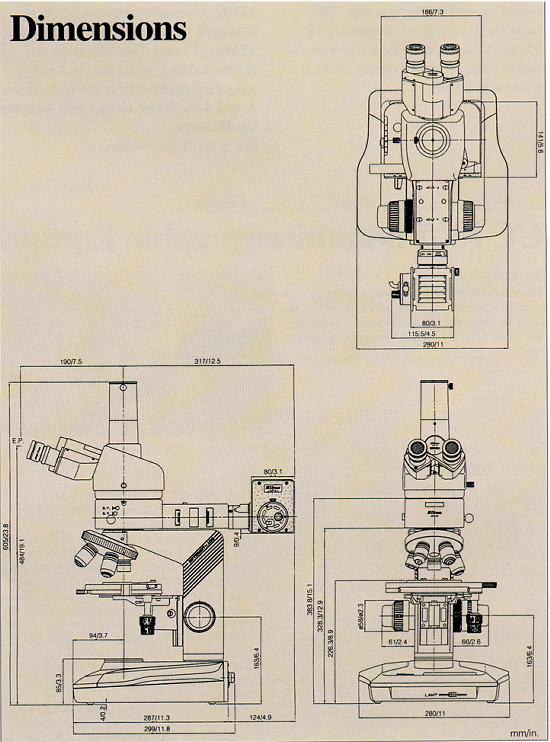

Click here for diagram: | Optphot 100S |
| Optiphot 100S | |
| Magnification | 12x ~ 3000x for observation |
| Eyepiece tube | UWTT, TT, TI, BT, BI |
| Eyepieces | CFUWL 10x, CFWN 8x, CFWN 10x, CFWN 10xM, CFWN D10x, CFWN D10xM, CFWN 12.5x, CFWN 15x |
| Epi-Illuminator | Universal Epi-illuminator 10 |
| Nosepiece |
|
| Objectives | CF Plan EPI
CF Plan EPI ELWD CF Plan EPI SLWD CF Plan Apo EPI CF LCD Plan CR CF Plan BD CF Plan BD ELWD CF Plan Apo BD CF Plan BD DIC CF Plan BD ELWD DIC CF Plan DI |
| Focusing Mechanism | Stroke: 39.7mm
Coarse Focusing: 5.3mm/rotation Fine Focusing: 0.1mm/rotation |
| Stage | 4R: Cross travel 110 x 100mm, square metal plate provided, 3- and 4-in.
wafer holder with adapter available.
R: Cross-travel 76 x 50mm, square metal plate provided as option. G: 360o rotatable, stage diameter 160mm, 1o reading goniometer with 6' reading vernier provided. |
| Weight (approx.) | 13kg (28.7 lbs)
(with TT and stage R) |
| Power Supply | 100-120V AV +-10% 50/60Hz
220-240V AC +- 10% 50/60Hz |
