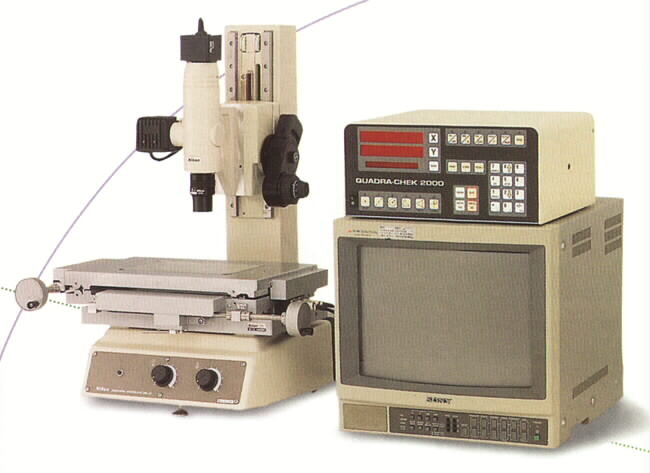

Video Measuring System VM-40/60
Nikon's full line of Measurescopes offers unparalleled performance and
convenience for a wide variety of industrial applications. The instruments
are built for rugged use, in the widest range of applications and the toughest
environments. Central to the system are Nikon's world renowned optics that
were designed specifically for measuring. Nothing else can produce the
sharp, crisp images that come from Nikon optics. Add to this a wide range
of stages and other accessories and you will find measuring systems that
set the standard.
Click here for Digital Cameras to Couple with microscope: | Digital
Imaging |
-
Offers a full line of Nikon measuring objectives. These optics are flat
field with long working distances, and are manufactured specifically for
measuring.
-
Electronic magnifications up to 3200x.
-
Massive cast steel stands for precision and stability.
-
Four Modular Stands:
-
VM-40/2, Medium and fine focus; 6" Z-Column
-
VM-40/4, Medium and super-fine focus; 6" Z-Column.
-
VM-40/L3, Course, medium, and super-fine focus; 0.4 micrometer scale built
in 6" Z-Column.
-
VM-60/L3, Course, medium, and super-fine focus; 0.4 micrometer scale built
in 8" Z-Column, built in telecentric aperture improves the performance
of the diascopic (profile) illuminator.
-
Wide selection of precision stages from 2" x 2" - 8" x 6" with built in
0.4 micrometer linear encoders and quick release option on axes with length
greater than 2".
-
Rotary Stage option with accessories.
-
Full line of stage accessories, rotating tables, and goniometers.
-
TTL (through the lens) illumination standard feature with Nikon measuring
objectives.
-
Choice of black and white or color CCD camera.
-
Standard interface to simple digital readouts, or Metronics QC2000, QC3000,
and QC4000 data processors.
-
Full line of optional illumination accessories, ring illuminators, fiber
bundles, and power supplies.
-
Modular design that accepts any of the Nikon Measurescope optical heads.
-
Two and three axes motor kits that are field retrofitable.
-
Full line of cross hair generators, focus aids, and digital accessories.
-
Optional video printers, video storage devices.
-
Local distribution, service, and application support.
-
Five year optical/mechanical and one year electrical warranty on Nikon
hardware. Review Nikon warranty card for complete details.
