Nikon offers a broad range of stages to choose from including the new 10 x 6 Stage. All models except the O3L boast an outstanding accuracy of (3+L/50) µm (L=measurement length in mm).

10x6 stage

4x4 stage

Stage Specifications

Type	Surface area mm (in.)	Stage glass dimen- sions mm (in.)	Crosswide travel mm (in.)	Reading method
10x6	450 x 286 (17.7 x 11.3)	305 x 190 (12.0 x 7.5)	250 x 150 (7.9 x 5.9)	Linear encoder
8x6	400 x 280 (15.8 x 11.0)	245 x 192 (9.6 x 7.6)	200 x 150 (7.9 x 5.9)	Linear encoder
6x4	350 x 240 (13.8 x 9.5)	204 x 145 (8.0 x 5.7)	150 x 100 (5.9 x 3.9)	Linear encoder
4x4	285 x 240 (11.2 x 9.5)	170 x 145 (6.7 x 5.7)	100 x 100 (3.9 x 3.9)	Linear encoder
03L	285 x 192 (11.2 x 7.6)	170 x 120 (6.7 x 4.7)	100 x 50 (3.9 x 2.0)	Linear encoder
2x2	195 x 192 (7.7 x 7.6)	107 in diameter	50 x 50 (2.0 x 2.0)	Linear encoder

Type	Min. reading mm	Stage top	Tool insta- llation	Loading capaci- ty kg (lb.)	Weight kg (lb.)
10x6	0.0001	-	N/A (screw)	20 (44)	Approx. 50 (110)
8x6	0.0001	-	N/A (screw)	15 (33)	Approx. 36 (79)
6x4	0.0001	-	N/A (screw)	10 (22)	Approx. 27 (60)
4x4	0.0001	-	N/A (screw)	6 (12)	Approx. 23 (51)
03L	0.0001	-	Dovetail	5 (11)	Approx. 15 (33)
2x2	0.0001	360° rotat- able	N/A (screw)	5 (11)	Approx. 13 (29)

For 9V
rotating table type 2

For 6 x 4, 4 x 4
rotating table type 3

For 10 x 6, 8 x 6, 100B rotating table type 4

For 03L
goniomater type 2

Rotating Table Specifications

Type	Table diameter (in.)	Glass insert diameter (in.)	Rotation range	Tool installation	Weight
Rotating Table Type 2	280mm (11.0)	262mm (10.3)	360°(uncalibrated)	-	Approx. 12kg (26 lb.)
Rotating Table Type 3	204mm (8.0)	165mm (6.5)	360°((uncalibrated)	Screw hole 6-M6	Approx. 5kg (11 lb.)
Rotating Table Type 4	282mm (11.0)	262mm (10.3)	360°(uncalibrated)	Screw hole 6-M6	Approx. 8kg (17.6 lb.)
Goniometer Type 2	160mm (6.3)	107mm (4.2)	360°(2' reading)	Screw hole 6-M6/T groove	Approx. 4kg (9 lb.)

Used to hold machined workpieces. Type A can be mounted directly to the 2x2 Stage, as can Type B to the 9V Stage.

tilting center fixturesA

	Tilting Center Fixtures A	Tilting Center Fixtures B
Max. workpiece	ø68 x 120mm	ø100 x 250mm
Center height	45mm	100mm
Tilting angle	10° (in 1° increments)	15° (in 1° increments)
Weight (approx.)	2.5kg (5.5 lb.)	6kg (13.2 lb.)

Tilting Center Fixture A

Mounting Compatibility

Tilting Center Fixture B

Tilting Center Fixtures A

Tilting Center Fixtures B

10x6

8x6

6x4

4x4

2x2

03L

1: Usable via the Rotary Table Type 3. 2: Usable via the Goniometer Type 2

For the 9V or 03L Stage

Used to hold pole-shaped workpieces horizontally which are difficult to hold with a tilting center fixture. Weighs approximately 1kg (2.2 lb.).

	Lower groove	Upper groove
Diameter capacity	5 -16 mm	33 - 41 mm
Height of center	13 - 25 mm	39 - 47 mm


This 3-axis counter displays the Z axis in addition to X and Y axes. The separate display unit can be mounted on the measuring microscope. An RS-232C port is provided.		Capable of displaying X and Y axes, this counter can be connected with data processors and digital printers via the RS-232C port.


Can send Reset and Send commands remotely.
Data Processors...... When connected to measuring microscopes, the DP-303 and DP-202 Data Processors accomplish calculations and other tasks related to your measurements and then print out the results. No complicated preparations are necessary to start up the system; just enter a few commands on the keypad.

An all-around model providing measurement and storing of data.		A feature-packed compact model.
ROM-DOS®-based operating system Large, dialog-type LCD display Built-in 3.5-inch floppy disk drive 3-axis counter CSV file conversion to read measurement data in spread- sheets such as MS-Excel. Built-in high-speed line printer RS-232C interface		No preliminary scanning of the workpiece necessary Compact design Display lamp indicating the number of input data Error warning buzzer RS-232C interface card (option)

Installed in a PC, this software provides various processing tasks, using the data captured by the connected instrument, such as a measuring microscope, profile projector, or a NEXIV CNC video measuring system. It allows the user to perform 2-dimensional data processing, make visual inspection of images, take measurements, or carry out other tasks that vary depending on the instrument connected, in an easy, commonly-used Windows®-based operating environment. The following three sets are available:

Provides support to your measurements using a PC with a commonly-used Windows® operating system

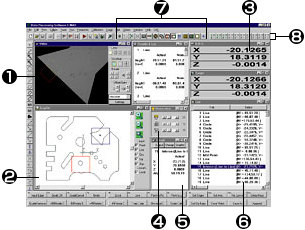

Multi-window display and simple operation make sophisticated measurements and processing easy.

(1) Video window
(2) Graphic window
(3) D.R.O. window
(4) Illumination window
(5) Results window
(6) List window
(7) Caliper window
(8) Measurement tool bar

Note: You can display the output window, image window, or edit list window whenever necessary.

Available in a variety of language versions. (English, Italian, German, French, Finnish, Swedish, Taiwanese, Mandarin Chinese, Korean, Japanese)

E-Max D Set (Data Processing Set)

•

Designed exclusively for processing measured data

•

Advanced 2-dimensional data processing function developed through experience with the NEXIV CNC Video Measuring System and DP Series Data Processors

•

Provides Navigation and many other convenient functions exclusively for manual measuring instruments

•

Off-line Teaching software, Report Generation software, and other optional software can be used in combination.

•

Can be used with notebook PCs (D Set only)

•

Automated illumination control for Diascopic, Episcopic and Ring illuminators

Configuration
• E-Max Data Processing Software
• IBM PC/AT compatible using Windows® 98)

E-Max M Set (Video Monitor Set)

•

Video monitoring of the workpiece by calling up its image in the video window

•

Allows chart measurements in the video window using chart generation software from CAD files or data.

•

Advanced 2-dimensional data processing function developed through experience with the NEXIV CNC Video Measuring System and DP Series Data Processors

•

Image filing

•

Provides Navigation and many other convenient functions exclusively for manual measuring instruments

•

Off-line Teaching software, Report Generation software, and other optional software can be used in combination.

•

Automated illumination control for Diascopic, Episcopic and Ring illuminators

Configuration
• E-Max Data Processing Software
• IBM PC/AT compatible using Windows® 98
• CCD camera
• Video capture board

E-Max V Set (Automated Video Edge Detection Set)

•

Provided with an image processing function, allowing manual measuring instruments to perform Automated Video Edge Detection with high repeatability, reducing human errors.

•

Allows chart measurements in the video window using chart software from CAD files or data.

•

Advanced 2-dimensional data processing function developed through experience with the NEXIV CNC Video Measuring System and DP Series Data Processors

•

Image filing

•

Provides Navigation and many other convenient functions exclusively for manual measuring instruments

•

Off-line Teaching software, Report Generation software, and other optional software can be used in combination.

•

Automated illumination control for Diascopic, Episcopic and Ring illuminators

Configuration
• E-Max Data Processing Software
• IBM PC/AT compatible using Windows® 98
• CCD camera
• Image processing board

Functions provided by each set:

	D Set	M Set	V Set
Data processing
Navigation during replay
Live video monitoring	—
Chart measurement	—
Automated video edge detection	—	—

For SC-212, SC-213, DP-202, and DP-303
Inputting data to inspection sheets manually is no longer necessary. The Macro Script Program enables you to transfer data from Nikon counters and/or data processors directly to Exel sheets via the RS-232C interface. Simple to use, yet greatly enhances your productivity.

direct link to exel sheet programs-directsheet

Required software	Microsoft Excel® 97 (English version) or newer version
Required memory	4 MB or more
Manufacturer	Nippon Filcon Co., Ltd.


Prints outs counter values by connecting it to digital counters SC-213 or SC-212. Note: Either X, Y axes values or Z axis value can be printed out when used with the SC-213.	Gauges stage travel accuracy up to 300mm. Both 10mm-interval sensor patterns and calibrations are provided. Made of low heat-expansion glass for minimizing influence of heat. Accuracy: Within 1µm against compensation values.


For all data processors	For the VC-20B
Used to send load-and-go commands to the DP-303, DP-202, and DPU-414. Frees both hands to enhance measurement efficiency.	This adapter is used to mount a stage other than the 10 x 6 Stage to the V-20B profile projector.
