Optiphot 150

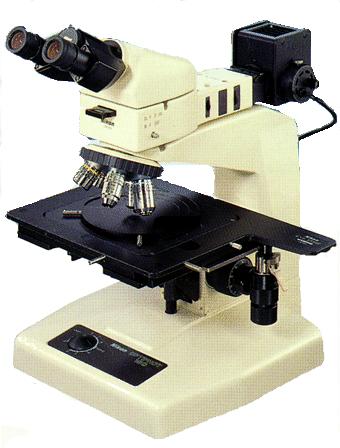

Click to Enlarge    Standard inspection microscopes for up to 6-in. wafers integrate the CF Infinity Corrected Optical System with a rigid frame. The OPTIPHOT 150 series is equipped with Nikon's CF Infinity Corrected Optical System, the new Universal Epi-illuminator 10 for pinhole illumination, brightfield, darkfield, DIC (Differential Interference Contrast), and epi-fluorescence observations, and a rigid frame that was designed using CAE structural analysis. The OPTIPHOT 150 series offers superior high-magnification observation compared with conventional microscopes and enables inspection of highly integrated wafers.



Click here to view accessories for the Optiphot 150: | Accessories |
Click here for Digital Cameras to Couple with microscope: | Digital Imaging |







For more information, call Capra at (508) 650-9700.

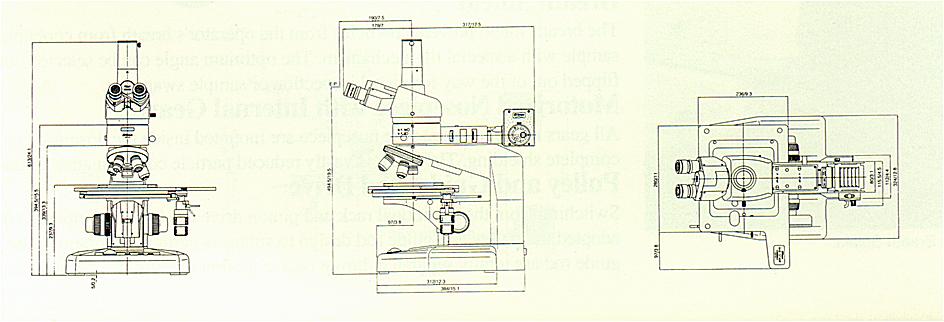

Click here for diagram: | Optiphot 150 |
Click here for another diagram: | Optiphot 150 |


  Optiphot 150
Magnification 40x ~ 2,250x for observation
Eyepiece tube UWTTL, TTL, TI, BT, BI, UWTT
Eyepieces CFUWL 10x, CFWN 8x, CFWN 10x, CFWN 10xM, CFWN D10x, CFWN D10xM, CFWN 12.5x, CFWN 15x
Epi-Illuminator Universal Epi-illuminator 10
Diascopic Illuminator Not Provided
Nosepiece Motorized Universal Quintuple Nosepiece
BD Quintuple Nosepiece
EPI Quintuple Nosepiece
Objectives CF Plan EPI
CF Plan EPI ELWD
CF Plan EPI SLWD
CF Plan Apo EPI
CF LCD Plan CR
CF Plan BD ELWD
CF Plan Apo BD
CF Plan BD DIC
CF Plan BD ELWD DIC
Focusing Mechanism Stroke 32mm
Coarse Focusing 5.2mm/rotation
Fine Focusing 0.1mm/rotation
Stage 6 x 6 Stage
156 x 154mm
Manual lever provided
3 ~ 6 in.
Remote Keypad Motorized nosepiece rotation buttons
Light balancing switch
Light intensity volume
Weight (approx.) 22kg (48 lbs)
(with TI and 6 x 6 stage)
Power Supply 100-120V AV +-10% 50/60Hz
220-240V AC +- 10% 50/60Hz
