TF & TM Series
TM series:
Features:
-
The Eyepiece section of the optical tube incorporates
an angle scale disc. Angle measurement is performed easily by turning the
angle scale disc to align the cross-hair rectile with the workpiece image.
-
Both the transmitted and reflected illumination intensity
can be adjusted to obtain the optimal illumination intensity for the workpiece.
-
Two XY stages with different travel ranges, 50mm
x 50mm and 100mm x 50mm, are available.
-
The TM-505/510 can output XY coordinate data if an
optional Digital Micrometer Head is connected to it.

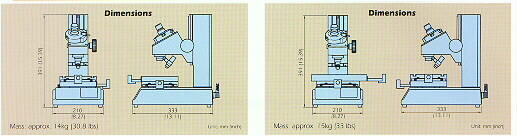

Click here to view Dimensions: | Dimensions
|
Click here to view Specifications: | Specifications
|

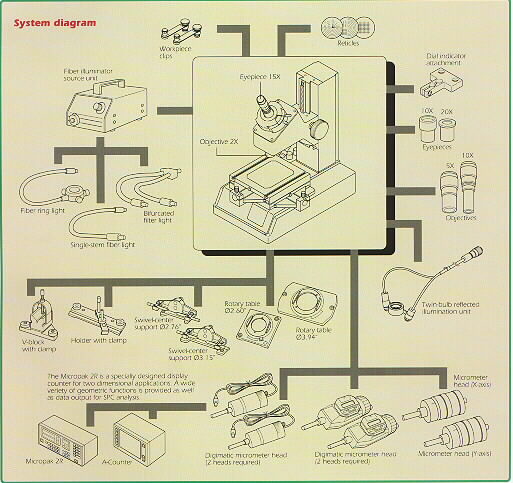

Click here to view System Diagram: | System
Diagram |
Click here for Digital Cameras to Couple with Microscope: | Digital
Imaging |
|
Click here to view Digital Readouts: | DRO's
| |
TF series:
Features:
-
Eyepiece with an ultra wide field of view for efficient
inspection.
-
Erect image moves in the same direction as the XY
stage enabling effective measurement with a natural feel.
-
Two XY stages with different travel ranges, 100mm
x 50mm and 200mm x 100mm, are available.
-
XY stages incorporate high precision linear scales.
-
Floating mechanism for easy operation.
-
The incorporated XY display is placed in the optimal
position for reading.
-
Both the transmitted and reflected illumination intensity
can be adjusted as desired.
-
A variety of accessories, including a video monitoring
system, photographic attachment, and binocular eyepiece, are available
to widen the range of applications.
-
The optical tube unit incorporates a cross-hair reticle
-
XY coordinate data can be output.
-
The TF-510FW had coarse and fine focusing knobs and
high-power objectives for high-magnification measurement and high-precision
height measurement.

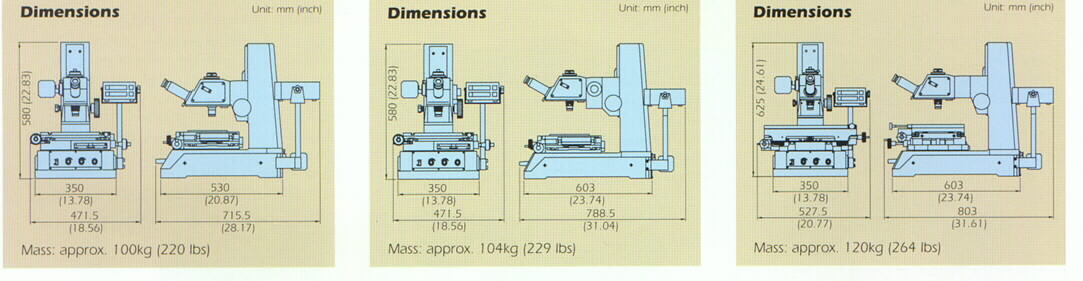

Click here to view Dimensions: | Dimensions
|

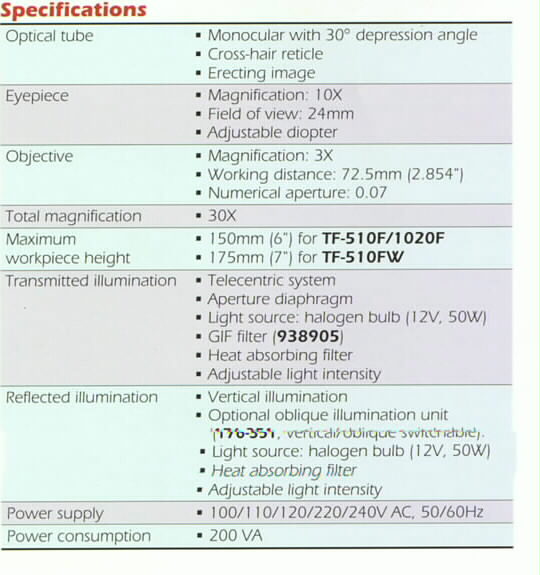

Click here to view Specifications: | Specifications
|

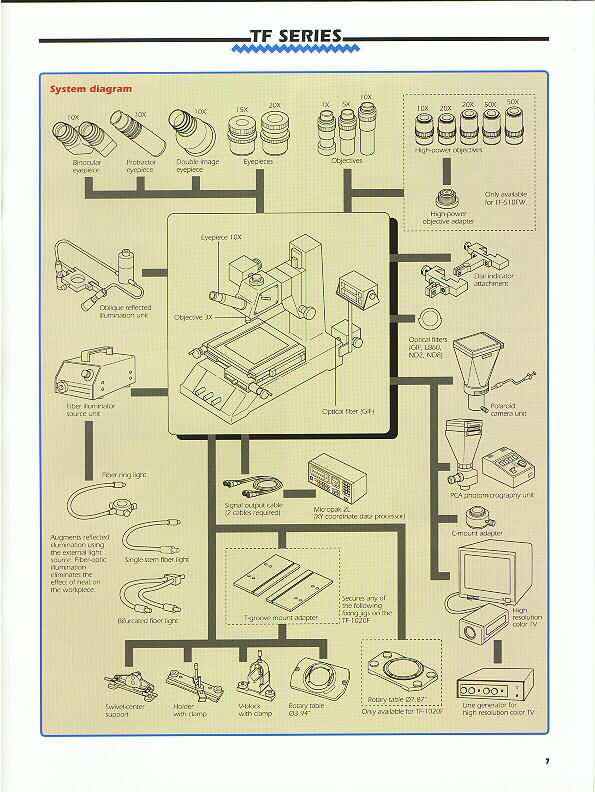

Click here to view System Diagram: | System
Diagram |
