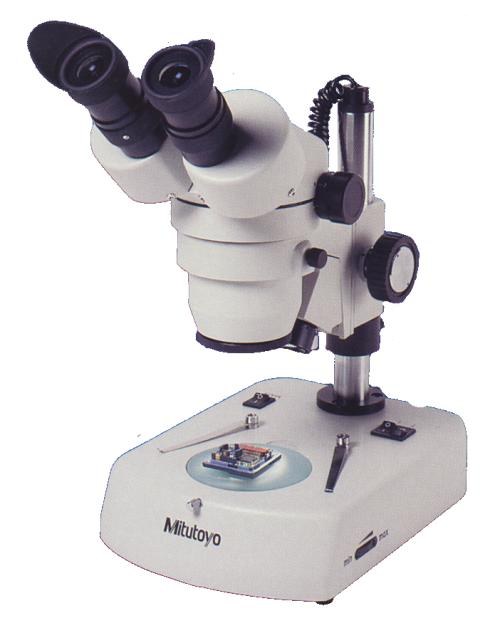

Zoom Stereo Microscope MSM-414
The MSM-414L is a traditional binocular stereo microscope for industrial,
medical, and classroom applications. It is ideal for electrical small part
inspection, assembly, and medical/biological dissection.
The MSM-414TL Trinocular stereo microscope offers
all the same features and capabilities of the MSM-414L with the added convenience
of accepting video and photographic equipment. By adapting a color camera
and monitor, eyestrain is eliminated and multiple viewers can observe the
same part.
The modular design of these stereo microscopes allows
unlimited applications in industry, education, OEM application, laboratory,
and personal use.
Features:
-
Continuous 10x - 40x magnification
-
Image always in focus throughout zoom range
-
Crisp, erect images with high resolution and excellent stereoscopic effect
-
Stereo-tube can be rotated a full 360o, for viewing at any angle
-
Bilateral zoom control knob adds convenience and increases operator efficiency
-
Diopter adjustment for both eyepieces
-
Binocular Tube Inclination: 45o
-
Focusing Range: 146" (27mm)
-
Interpupillary Adjustable Range: 2.12" - 2.99" (54mm - 76mm)
-
Optional Zoom Ranges from 2.5x - 10.x to 30x - 120x
Optional
Accessories
-
5x Eyepiece
-
10x Eyepiece
-
15x Eyepiece
-
20x Eyepiece
-
0.5x Objective
-
0.75x Objective
-
1x Objective
-
1.5x Objective
-
Polaroid MicroCam Photography Unit
-
High Resolution Color CCD Camera System
-
Fiber Illuminator Source Unit
-
Single-Stem Fiber Light Guide
-
Dual-Stem Fiber Light Guide
Click here for Digital Cameras to Couple with Microscope: | Digital
Imaging |
