Paired DIN KHW 10x super wide 20mm field of view eyepieces.
Viewing Head:

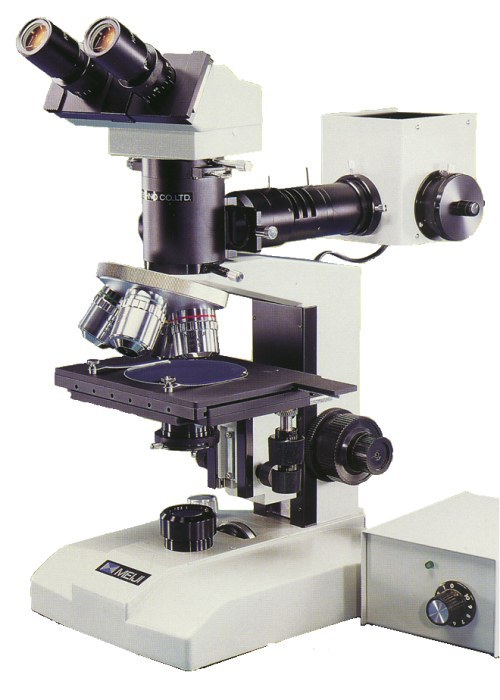

The ML8500 Series Metallurgical Microscope is equipped with either
an erect image binocular or non-erect image trinocular viewing head inclined
at 30o and rotatable through 360o for comfortable
viewing. Each eyetube is provided with a graduated diopter adjustment.
Interpupillary distance is adjustable between 52mm and 72mm. (Erect image
trinocular optional.)
Objective Changer:
Extra large, revolving quadruple ball-bearing nosepiece.
Objectives:
Infinity corrected, S. Plan Brightfield / Darkfield objectives. B.D.
S. Plan MET 4x, B.D. S Plan MET 10x, B.D. S. Plan MET 20x, and B.D. S.
Plan MET 40x. (Non standard thread.)
Stage:
Rectangular mechanical stage 172mm x 130mm top plate with 94.5mm diameter
clear glass insert. 100mm x 100mm travel. Equipped with precision ball
bearing guides and low position drop-down coaxial controls for X-Y movement.
Condenser:
Equipped with rack and pinion focusable substage condenser with iris
diaphragm and filter tray and clear blue filter.
Focusing Movement:
Coaxial Low positioned coarse and fine focus controls, graduated to
2 microns per division, are fitted with tension adjustment and safety autostop.
The focus range is 35mm. The movement runs in extra wide precision ball
bearing hardened steel tracks.
Illuminators:
Vertical illuminator with Koehler design equipped with 12V 50W Halogen
light source, infinity system lens, field iris, aperture iris, and filter
slots. Capable of brightfield, darkfield, or simple reflected light polarization
technique. Includes blue, green, yellow, and neutral density filters (ND2
and ND8) in mounts. Electronic transformer with variable rheostat control
is supplied in a separate case. Transmitted light Koehler illuminator with
6V 30W halogen lamp, electronic transformer, and variable rheostat are
built into the base.
Weight:
Approximately 10.75kg. (ML8520), or 10.73kg. (ML8530)
