Stereoscopic Microscope EMZ-5

The versatile EMZ-8TR zoom stereo body features high-resolution zoom optics, which deliver crisp sharp images, excellent resolution and superior image contrast. The EMZ-8TR has been specially designed for extended use in assembly, inspection, teaching and training situation.

The EMZ-8TR trinocular body directs light to all three viewing ports simultaneously. The specimens image can be viewed through both eyepieces while being observed on a video monitor or photographed using the standard 35mm or Polaroid camera accessories.

The EMZ-8TR offers a 6.5:1 zoom ration and provides extended magnifications from 2.45X to 202.5X with optional eyepieces and auxiliary lenses.

A specially designed video "C"mount with built-in 0.6X lens is also available as an option. Using the MA151/8TR video "C"mount results in an approximate 40 percent increase in your video monitors field of view.

Feature:

• Convergent optical system (Greenough design).
• Crisp, erect high-resolution images with excellent stereoscopic effect.Rugged all metal body designed to last a lifetime.
• Zoom range:  0.7X to 4.5X     Zoom ratio:  6.5:1.
• Ergonomically positioned bilateral zoom controls.
• Binocular eyetubes inclined at 45° for fatigue fee viewing.

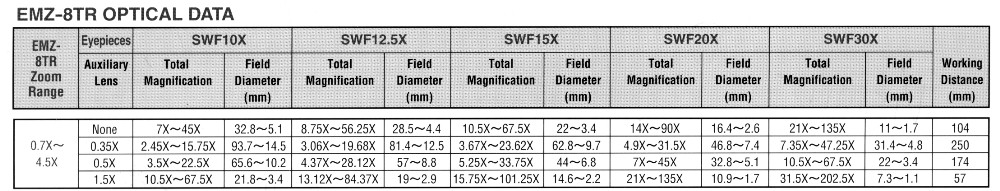

• Total magnification range available with optional auxiliary lenses and eyepieces:  2.45X to 202.5X.
• Dual diopter adjustment (±5  diopters) allows the specimen to remain in focus throughout the entire zoom magnification range.
• Interpupillary distance adjustment from 54mm to 75mm.
• Trinocular body can be rotated a full 360° and locked in any position.
• Standard working distance:  104mm.
• Extended working distances with optional supplementary lenses:  57mm to 250mm.


For more information, call Capra at (508) 650-9700 .
