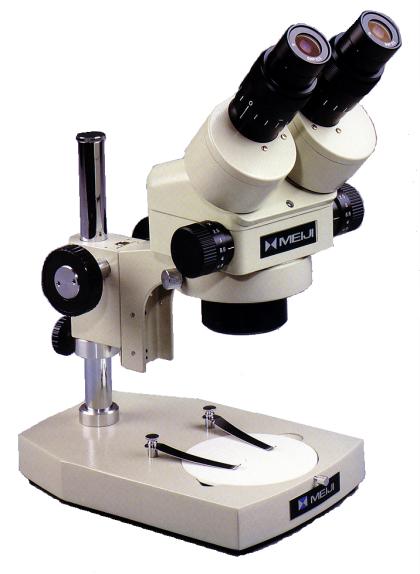

Stereoscopic Microscope EMZ-5
The EMZ Zoom Stereo Microscopes are widely used for various applications,
such as assembly and inspection of semiconductor devices and as an indispensable
part in bonding machines and microtomes as well as for educational, clinical,
and research purposes. In the newer EMZ-5 model, side-mounted zoom controls
are used which are especially smooth in operation. Each control is graduated
so that the zoom magnification (from 0.7x to 4.5x) can be read off from
either side.
Features:
-
Crisp, erect high resolution images and excellent stereoscopic effect.
-
90mm working distance regardless of magnification.
-
Binocular tubes with an inclination of 45o for greater ease
of observation.
-
New side-mounted zoom controls.
-
Once brought in focus, image remains clear and sharp throughout the whole
0.7x to 4.5x zoom range.
-
Interpupillary distance adjustment from 54mm to 75mm.
-
Dioptric adjustment with a range of +- 5 diopters is possible with both
eye tubes.
-
Binocular body can be rotated a full 360o, and locked in any
position.
-
A wide variety of auxiliary lenses, eyepieces, etc., are available.
-
Designed as a Modular System.
Click here for Digital Cameras to Couple with Microscope: | Digital
Imaging |
For more information, call Capra at (508) 650-9700.
Telephone: (508) 650-9700
