PAX-it! Enhanced Measurement

The PAX-it Enhanced Measurement Module provides all of the tools of the database and archival software as well as all of the measurement capabilities of the Basic Measurement Module. in addition to these powerful tools, you will also have tools to perform grainsizing, area percentages and nodularity measurement. Simple wizard interface simplifies the process
Storage of settings allows construction of standardized, user defined wizards for repeat analyses
Include or exclude holes in objects

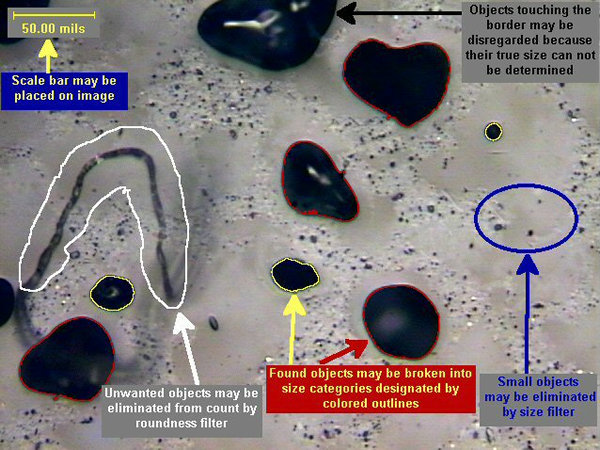

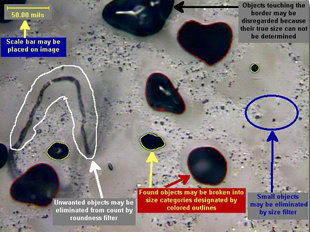

Click to enlarge

The Enhanced Module includes all Basic Module features plus:

Automatic detection based on threshold levels
Filters for detected objects
User-defined wizards for repetitive analyses
Nodularity wizard
Ferrite/Pearlite wizard
Grainsize wizard
Separate touching objects manually or automatically
View percentages and roundness of areas detected (porosity, nodularity)
Detect within a region of interest (ROI)
Complete customizable reporting
Multiple passes with different settings allow ratios of objects to be obtained

Nodularity & Ferrite/Pearlite Wizard	Grainsizing Wizard	User Defined Wizards
User defines the values to be used in the assay Entire image or a specific region of interest in the image may be used for analysis Settings may be restored, allowing for repeatability	Easy step by step wizard Usable at any magnification Uses a choice of ASTM standard assays User may manually adjust the automated settings	Construct your own analytical routines, and save them to be applied to new samples Adjust routines manually to accommodate differences in samples or lighting

For more information, call Capra at (508) 650-9700 .
